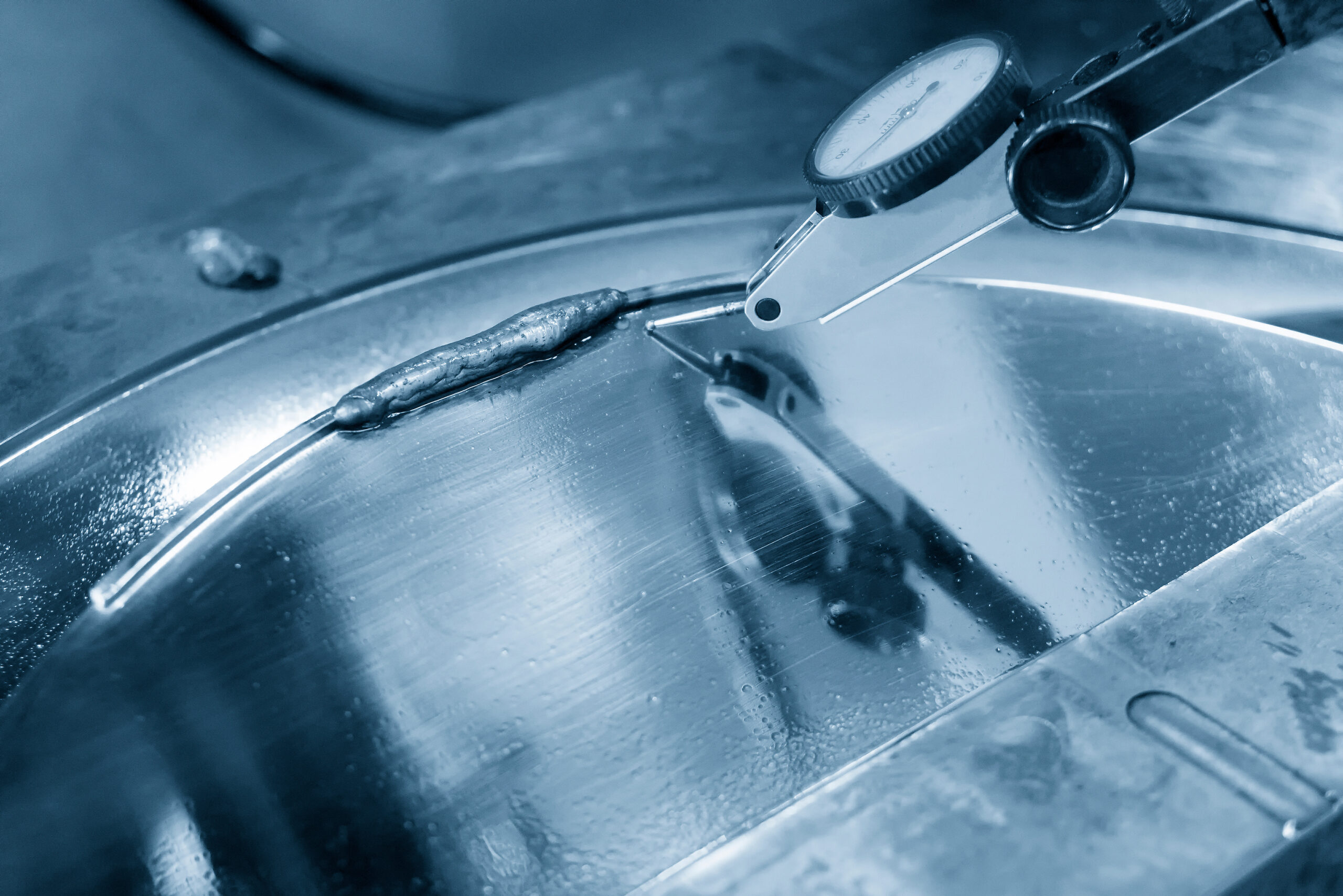

Mold and Die Repair ALWS scaled

The Intricacies of Injection Mold and Die Repair

Injection molds and dies are critical tools in manufacturing, shaping everything from plastic consumer goods to high-strength metal components. Over time, these tools undergo significant wear due to the extreme pressures, temperatures, and repetitive cycles involved in production. Timely repairs and maintenance are essential to maintaining operational efficiency and reducing downtime.

Common Issues in Injection Molds and Dies

Wear and Erosion:

  • Continuous material flow erodes cavity walls, cores, and runners.
  • Surface treatments like chrome or nitriding can delay wear but not eliminate it entirely.

Cracks and Stress Fractures:

  • Result from repeated thermal cycling and mechanical stresses.
  • Often occur in sharp corners or thin walls where stress is concentrated.

Thermal Damage:

  • High temperatures can cause oxidation and scaling, reducing tool life.

Advanced Repair Techniques

Laser Welding:

  • Adds precise material buildup in worn or damaged areas.
  • Minimal heat distortion allows repairs in intricate regions like ribs or threads.

TIG Welding:

  • Used for larger surface areas or sections requiring structural reinforcement.
  • Offers strong, reliable bonds but requires skilled operators.

CNC Machining and Finishing:

  • Re-sizes and re-shapes repaired components to meet original specifications.
  • Ensures tight tolerances and a seamless fit.

Post-Repair Treatments

After welding and machining, molds often require additional treatments to restore their functionality:

  • Polishing: Removes surface imperfections for improved part release.
  • Texturing: Re-applies textures to match original aesthetics.
  • Heat Treatments: Restores material hardness and thermal stability.

Material Compatibility

Repairing molds and dies involves a deep understanding of material properties.

Typical materials include:

  • Tool Steels (H13, P20): Common in high-stress molds.
  • Copper Alloys: Ideal for sections requiring rapid heat dissipation.
  • Aluminum Alloys: These are used in prototype molds for their lightweight and machinability.

Maximizing Tool Longevity

Routine maintenance, such as cleaning, lubrication, and alignment checks, is crucial for extending tool life. Investing in predictive maintenance techniques, like thermal imaging and ultrasonic testing, can identify potential failures before they occur.
